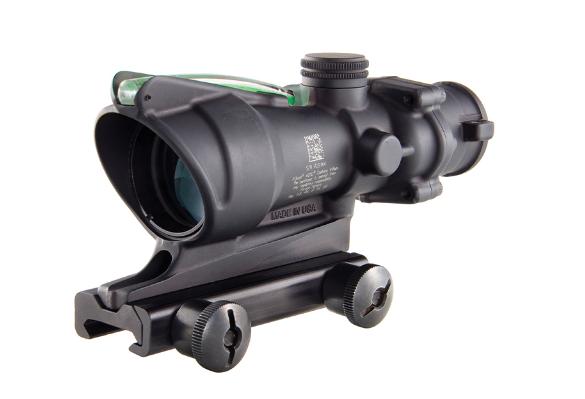

Trijicon Acog ® 4x32 Bac Riflescope -.223/5.56 Bdc Green Chevron Reticle, Thumbscrew Mount, Tritium/Fiber Optics Illuminated

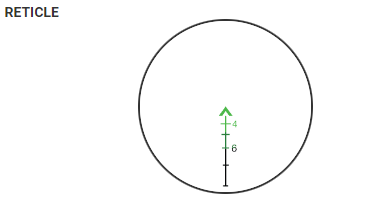

The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19 in. at 300 meters. This allows range estimation for silhouette targets. Features dual illumination (Fiber optics provides daylight illumination and tritium illuminates reticle at night). The ranging reticle is calibrated for 5.56(.223 cal) flattop rifles out to 800 meters.

Weight
15.1 oz. (428.08g)
Magnification
4x
Objective Size
32mm
Reticle Pattern
Chevron
Day Reticle Color
Green
Night Reticle Color
Green
Bullet Drop Compensating (BDC)
Yes
Caliber
.223 / 5.56
Illumination Source
Fiber Optics & Tritium
Power Source
Fiber Optics & Tritium
Eye Relief
1.5 in. (38.1mm)
Exit Pupil
0.32 in. (8.13mm)
Field of View (degrees)
7°
Field of View (feet)
36.8 ft. @ 100 yds. (12.27m @ 100m)
Mount
Flattop Thumbscrew Mount (TA51)
Housing Material
Forged Aluminum
Finish
Matte Black
