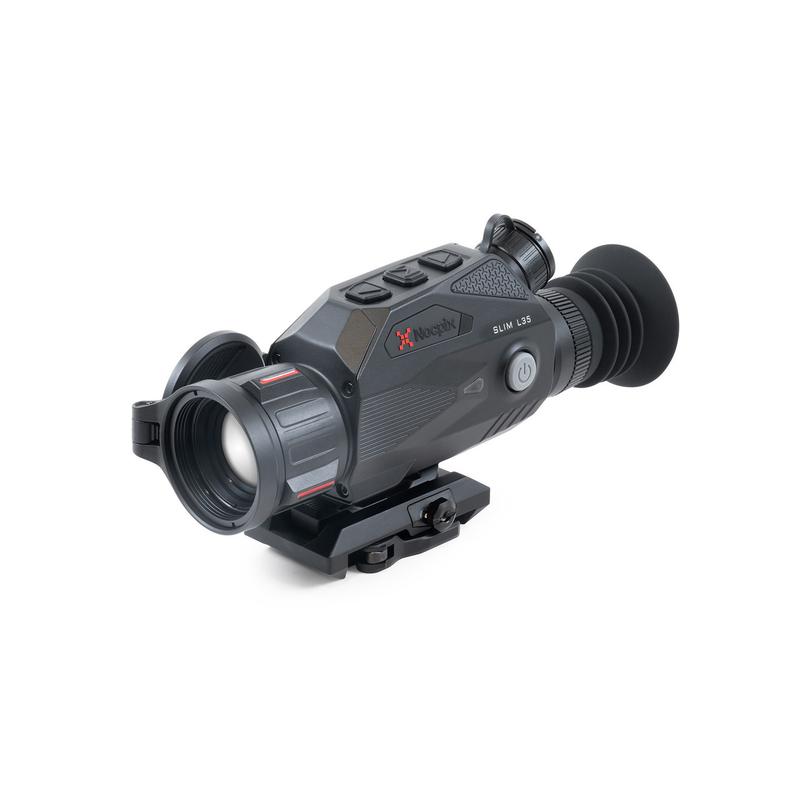

Irayusa Nocpix Slim L35 Multi- Function Thermal Optic 384x288 35 Mm

The new SLIM series from Nocpix provides the best value and features in a compact optic. Focused on versatility and ease of use, SLIM models can be used as either a handheld monocular or a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included IRB-2 batteries (flay-top 18650 style cell) are easy to swap–letting you stay out longer with the ability to charge through the optic using a magnetic cable. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing and hunting experience.

• Ambidextrous one-handed design for easy use as a handheld monocular or weapon sight.
• Recoil-activated video automatically records footage before and after a shot.
• High-contrast 1024×768 AMOLED display provides increased clarity and detail.
• Quick-release dual-throw mount with a magnetic alignment aid provide fast and secure return-to-zero (1-MOA) weapon mounting.
• Uses common 18650 style rechargeable batteries.
• Available in high and standard-resolution models.
• Quick, secure charging via the magnetic charging port.

• Optics

  Objective Focal Length

  35mm

  Detection Range

  1750 Yards

  Optical Magnification

  3.5X

  Digital Magnification

  4x

  Objective Lens Material

  Germanium

  Horizontal Angular Field of View

  7.5°

  Vertical Angular Field of View

  5.7°

  Objective Diameter

  35mm

  Objective F#

  1.0

  Eye Relief

  48mm

  Diopter Range

  -5 to +5

  Focusing Mechanism

  Manual Focus

  Display Type

  AMOLED

  Display Resolution

  1024×768

• Features & Performance

  Reticle

  8 (1 Dynamic, 6 Static, 1 DIY)

  Color Palettes

  White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian

  Stand-by Mode

  Yes

  Picture-in-Picture

  Yes

  Storage Capacity

  32GB

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  One-Shot Zero

  Yes

  Connector Type

  USB-C

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

  Video Output

  Yes

  Power Source

  USB-C External, 18650 Battery

  Run Time

  4+

  External Power Source

  USB-C

  Warranty

  5 Years

  Startup Time

  <10 Seconds, Instant from Standby

  Country of Manufacture

  China
