New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.
Attention: Product images are for illustrative purposes only. Please verify the item using the Model Number, UPC, product description, and specifications prior to purchase.

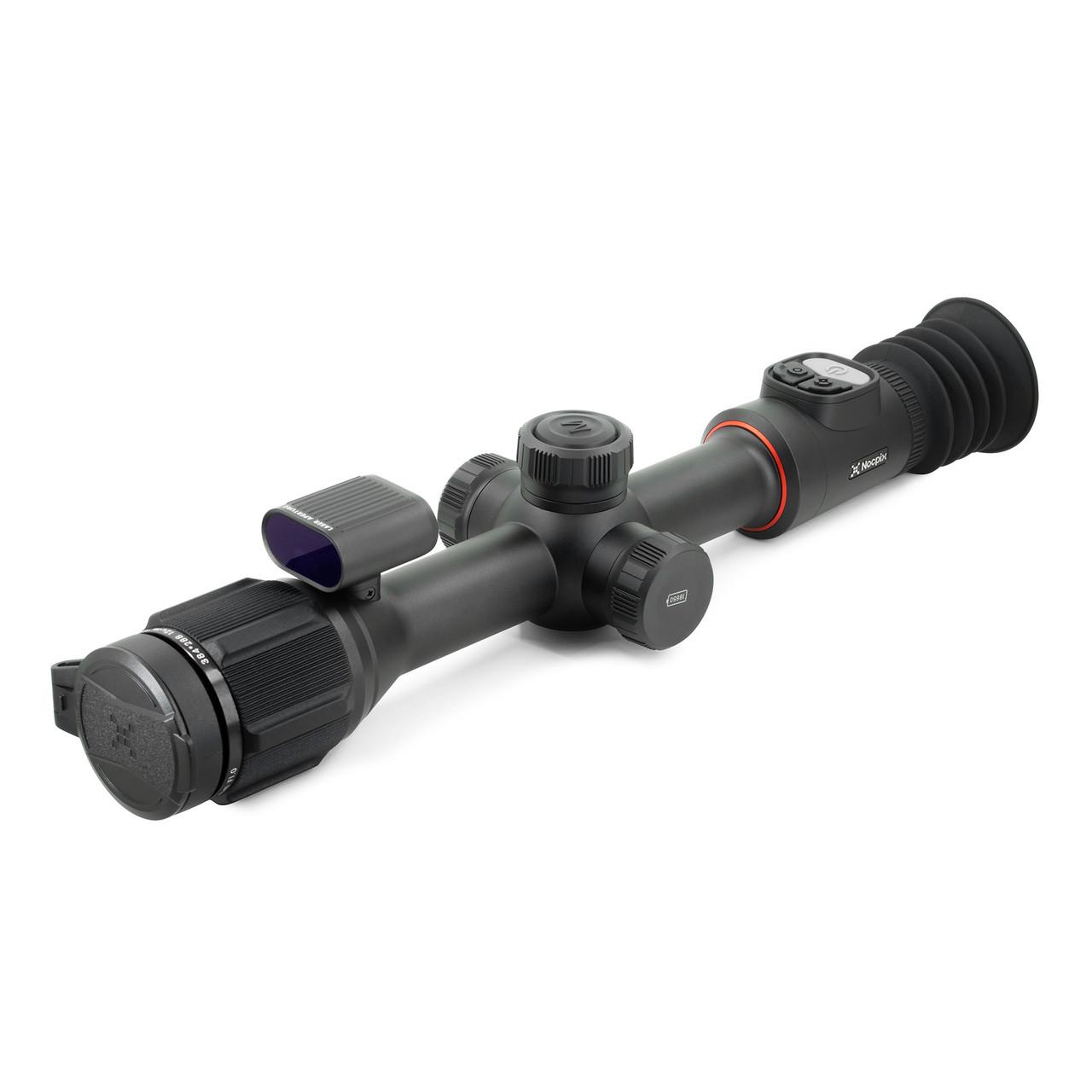

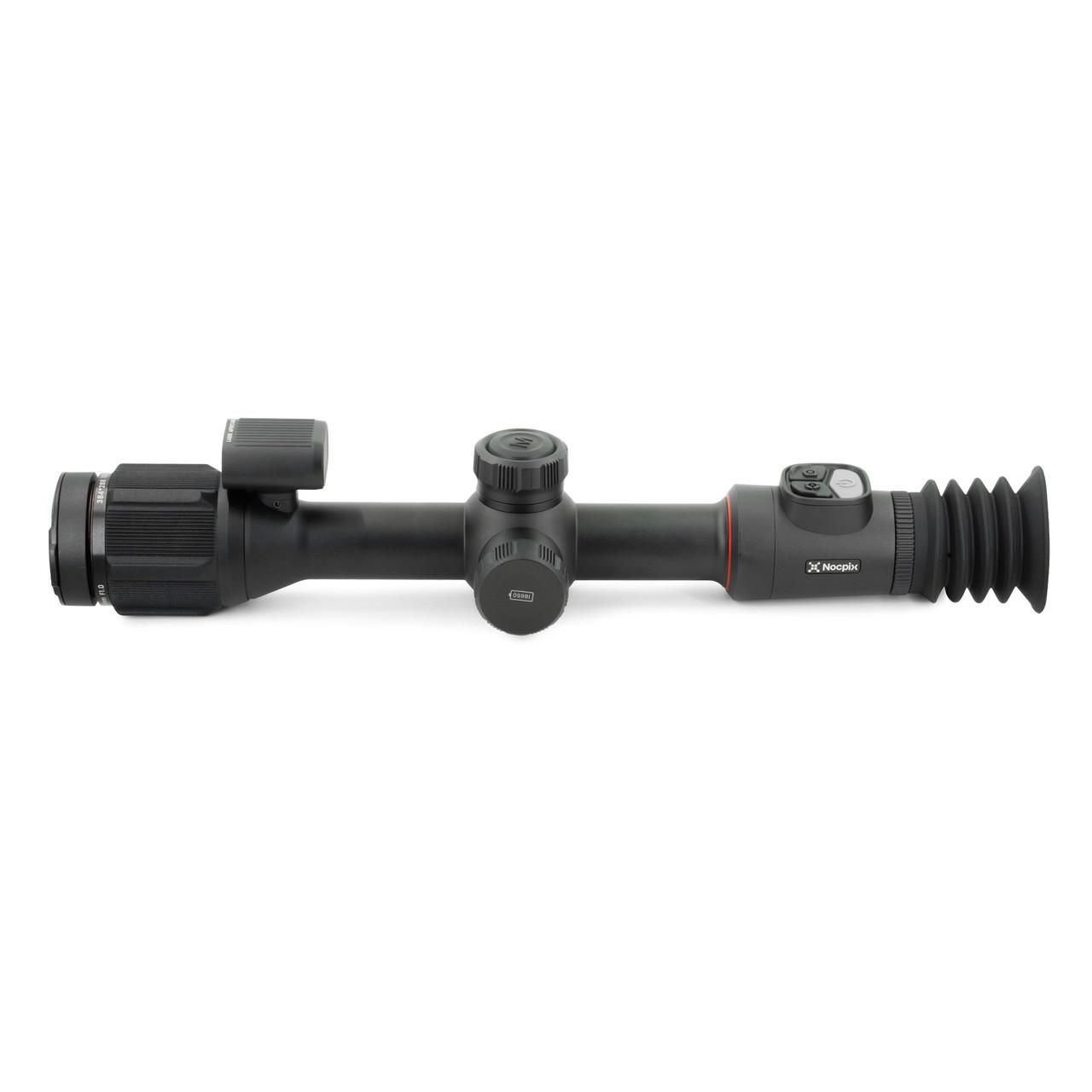

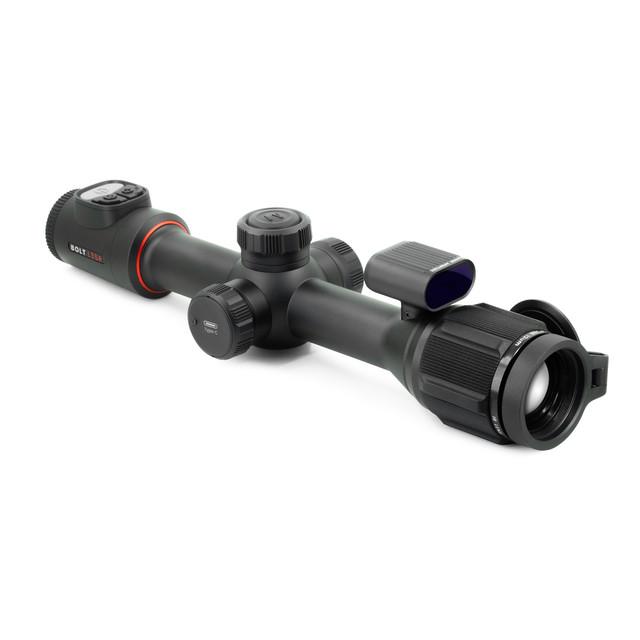

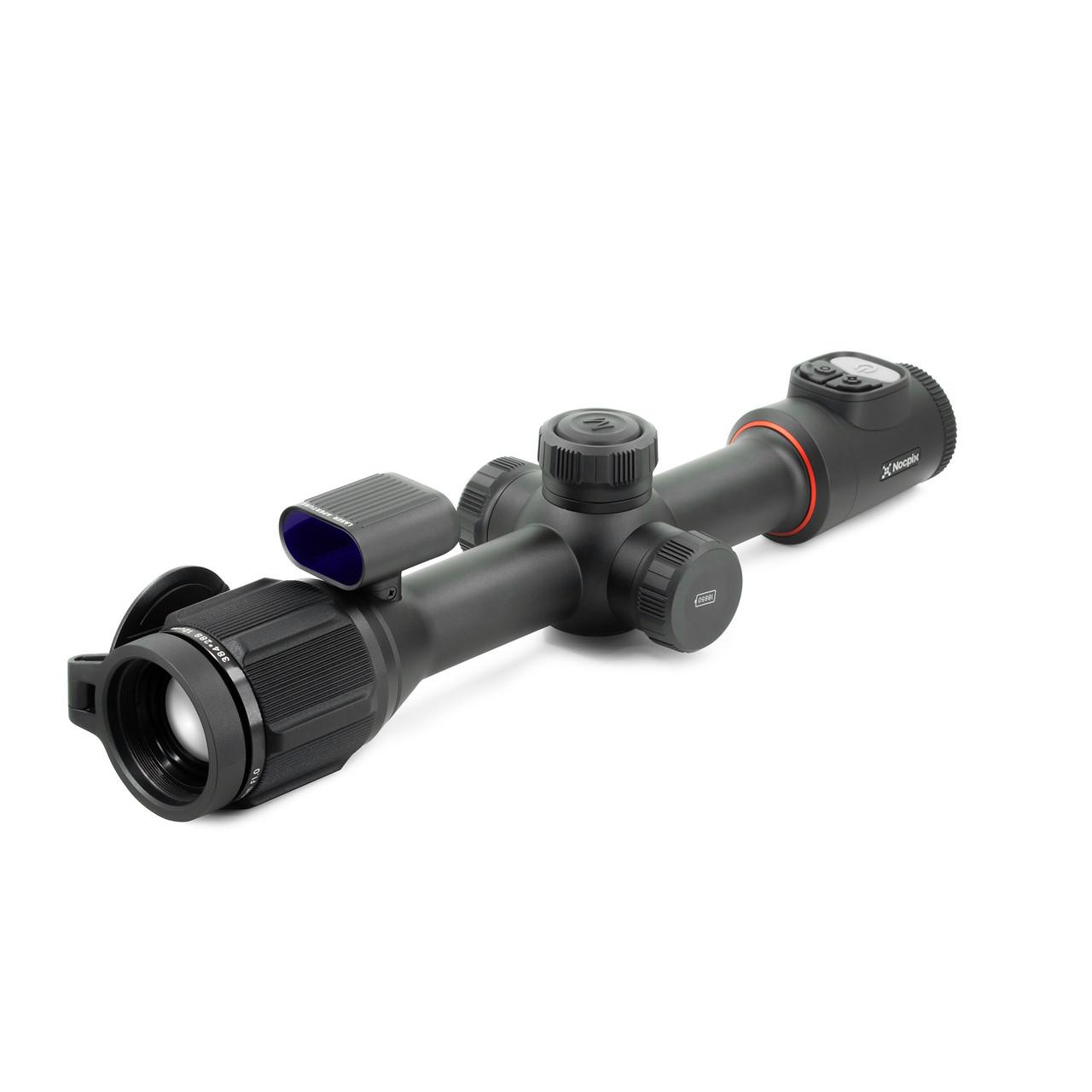

Irayusa Nocpix Bolt L35r Thermal Weapon Sight Lrf 384 35mm
$1,999.99
1 In Stock
| Device Technology: | Thermal Imaging |
| Objective Focal Length: | 35 mm |
| Sensor Resolution: | 384x288 |
| Detection Range: | 1970 Yards |
| Sensor Pixel Size: | 12 µm |
| Sensor Frame Rate: | 50 Hz |
| Optical Magnification: | 3.5X |
| Digital Magnification: | 4X |
| Objective Diameter: | 35 mm |
| Objective F#: | 1.0 |
| Onboard Recording: | Yes |
| SKU: | BOLT-L35R |
| UPC: | 850048751644 |
| Manual: | Download |
| Product Page: | NocpixUSA |
-
Optics
- Objective Focal Length
-
35 mm
- Detection Range
-
1970 Yards
- Optical Magnification
-
3.5X
- Digital Magnification
-
4X
- Objective Lens Material
-
Germanium
- Horizontal Angular Field of View
-
7.5°
- Vertical Angular Field of View
-
5.7°
- Objective Diameter
-
35 mm
- Objective F#
-
1.0
- Focusing Mechanism
-
Manual Focus
- Eye Relief
-
50mm
- Display Type
-
AMOLED
- Diopter Range
-
-5 to +5
- Diopter Range
-
-5 to +5
- Display Resolution
-
1024×768
-
Features & Performance
- Startup Time
-
<10 Seconds, Instant from Standby
- Rangefinder
-
Integrated 1,300 Yard LRF
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- Storage Capacity
-
32 GB
- Connector Output
-
Power/Data
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- One-Shot Zero
-
Yes
- Stand-by Mode
-
Yes
- Warranty
-
5 Years
- Run Time
-
6+
- Power Source
-
USB-C External, 18650 Battery, Built-In Battery Pack
- Reticle
-
8 (7 Static, 1 DIY)
- Connector Type
-
USB-C
- External Power Source
-
USB-C
- Country of Manufacture
-
China
- Wifi
-
Yes
- Onboard Recording
-
Yes
- Image Capture
-
Yes
- Video Output
-
Yes
-
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Recoil Rating
-
1000 g/s² (300 Win./7mm Mag)
- Ingress Protection
-
IP67
-
Physical
- Length
-
14.8
- Width
-
3.6
- Height
-
3.0
- Weight
-
31.0 oz
- Housing Material
-
T-6063 Aluminum
-
Sensor Specifications
- Device Technology
-
Thermal Imaging
- Sensor Type
-
Nocpix 384
- Sensor Resolution
-
384x288
- Sensor Pixel Size
-
12 µm
- Sensor Frame Rate
-
50 Hz
- Thermal Sensitivity
-
≤20 mk
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
